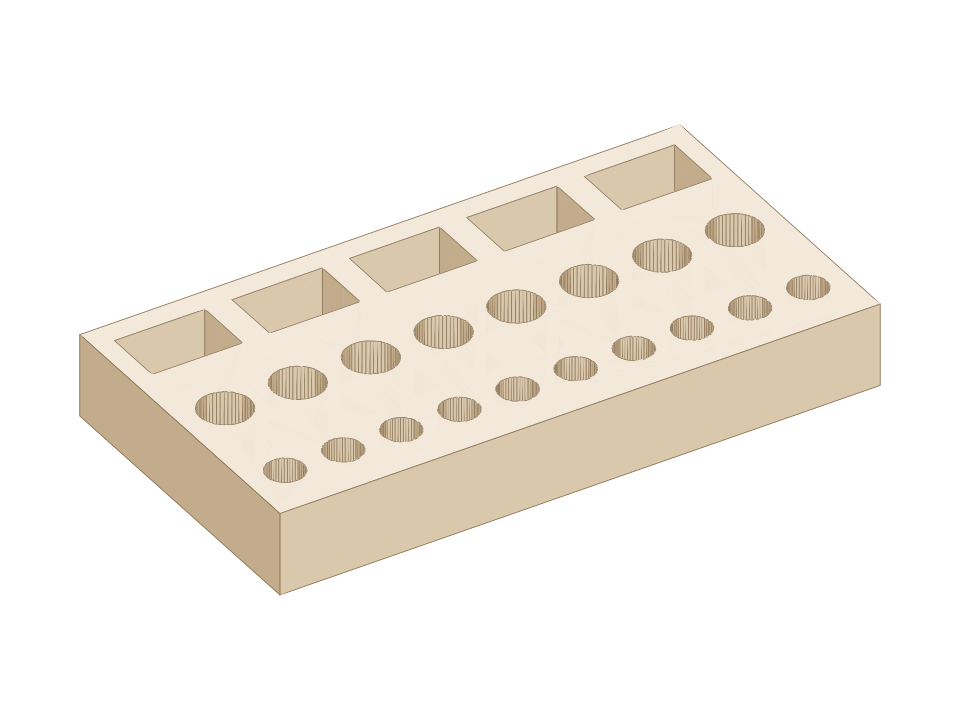

Mixed battery station — measured upright storage for AAA, AA, and rectangular 9V batteries.
Twenty-three batteries stood upright in a 180 × 96 mm block: ten AAA in 10.5 mm pockets, eight AA in 14.5 mm pockets, and five 9V in 26.5 × 17.5 mm slots. Each pocket has 0.6 mm of clearance added.
The block is 25 mm tall with a 3 mm floor, so most of each battery stands above it, clear to pick up. To hold only one size, or more of one, change the rows in Customize.
We check every file opens and matches its stated size. Before printing, compare the printed size with your own measurements.
| Label | Inside size (approx.) | Position |
|---|---|---|
| Row 1 · Pocket 1 | 11.10 mm × 11.10 mm | Left · front |
| Row 1 · Pocket 2 | 11.10 mm × 11.10 mm | Left · front |
| Row 1 · Pocket 3 | 11.10 mm × 11.10 mm | Left · front |
| Row 1 · Pocket 4 | 11.10 mm × 11.10 mm | Centre · front |
| Row 1 · Pocket 5 | 11.10 mm × 11.10 mm | Centre · front |
| Row 1 · Pocket 6 | 11.10 mm × 11.10 mm | Centre · front |
| Row 1 · Pocket 7 | 11.10 mm × 11.10 mm | Centre · front |
| Row 1 · Pocket 8 | 11.10 mm × 11.10 mm | Right · front |
| Row 1 · Pocket 9 | 11.10 mm × 11.10 mm | Right · front |
| Row 1 · Pocket 10 | 11.10 mm × 11.10 mm | Right · front |
| Row 2 · Pocket 1 | 15.10 mm × 15.10 mm | Left · middle |
| Row 2 · Pocket 2 | 15.10 mm × 15.10 mm | Left · middle |
| Row 2 · Pocket 3 | 15.10 mm × 15.10 mm | Left · middle |
| Row 2 · Pocket 4 | 15.10 mm × 15.10 mm | Centre · middle |
| Row 2 · Pocket 5 | 15.10 mm × 15.10 mm | Centre · middle |
| Row 2 · Pocket 6 | 15.10 mm × 15.10 mm | Right · middle |
| Row 2 · Pocket 7 | 15.10 mm × 15.10 mm | Right · middle |
| Row 2 · Pocket 8 | 15.10 mm × 15.10 mm | Right · middle |
| Row 3 · Pocket 1 | 27.10 mm × 18.10 mm | Left · back |
| Row 3 · Pocket 2 | 27.10 mm × 18.10 mm | Left · back |
| Row 3 · Pocket 3 | 27.10 mm × 18.10 mm | Centre · back |
| Row 3 · Pocket 4 | 27.10 mm × 18.10 mm | Right · back |
| Row 3 · Pocket 5 | 27.10 mm × 18.10 mm | Right · back |
How it prints
A solid block with pockets cut straight down: it prints pockets up, with no supports.
View
Initial reviewed catalogue publicationLatest
2026-10-04 · template v1.0.0 · file 3b1b6f1d…
Each version keeps its own size, file and license. An earlier version stays available if this one changes.
Generated model license
Full terms ↗CC-BY-4.0, inherited from Multi-row Pocket Organizer v1.0.0 and recorded with this revision. It cannot change later.
