Made from the exact file you download for revision 2.

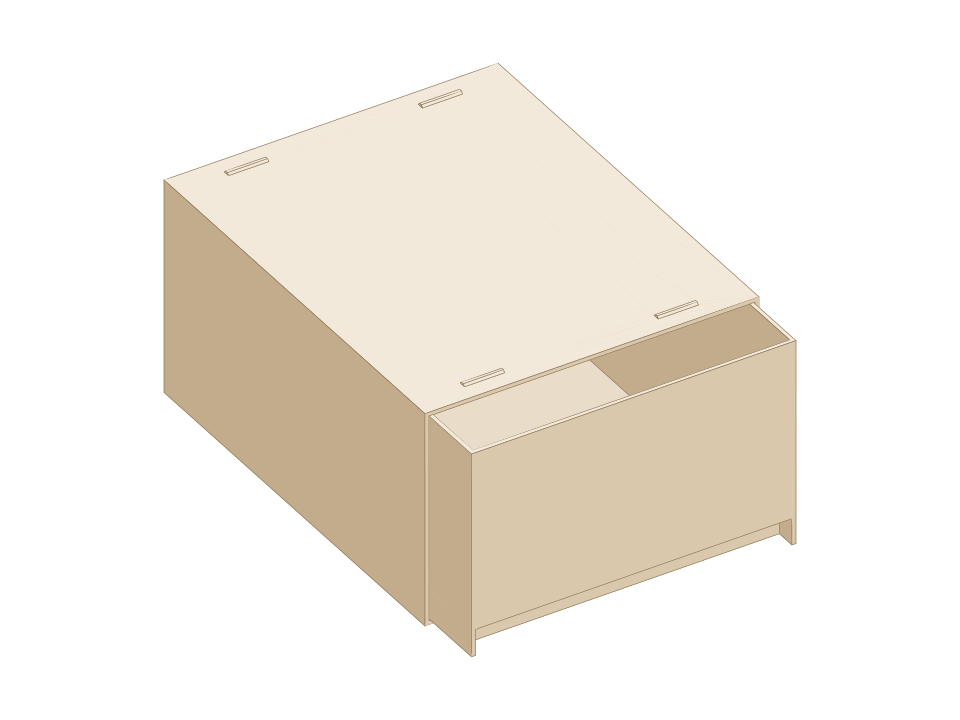

Tall stackable drawer 200 × 240 mm and 130 mm tall, for chargers, tape and bulkier things. It stacks under the Six-bay desk organizer and on other drawers of the same footprint.
The tallest of the three stackable drawers, 130 mm, for chargers, tape and bulkier things. Its front panel stops short of the floor, leaving a lip to hook your fingers under.
It prints as two parts from one generation: a shell and the insert that slides in it. The lip's level edge is printed as a bridge, so your printer may need support under it. Put it at the bottom of a stack, with the lower drawers above.
| Label | Inside size (approx.) | Position |
|---|
How it prints
The shell is printed standing on its back, so no wall has to span the opening. The insert prints as it stands. The slot and the notch need no supports; the lip's level edge may need support, depending on your printer.
2026-10-13 · template v1.0.2 · file 17670902…
2026-10-13 · template v1.0.1 · file 17670902…
Each version keeps its own size, file and license. An earlier version stays available if this one changes.
Generated model license
Full terms ↗CC-BY-4.0, inherited from Stackable Storage Drawer v1.0.2 and recorded with this revision. It cannot change later.
